NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid
NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

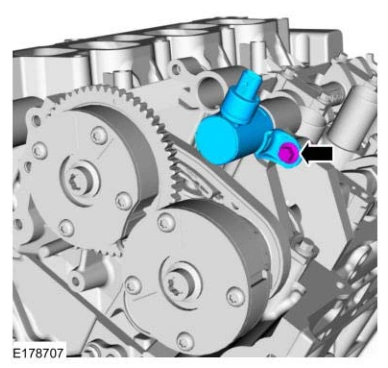

23. Install the LH exhaust VCT oil control solenoid and the bolt.
24. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
