Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5241

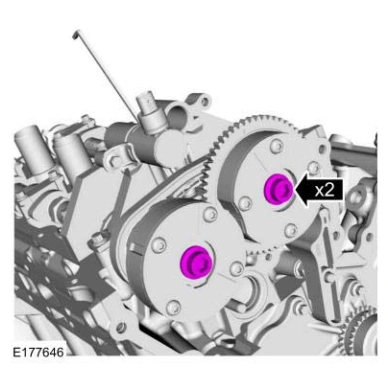

Installation — original illustration 1, reference 5241Original colors & callouts · Select to enlarge

NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.

NOTE: The VCT oil control solenoids are removed for clarity.

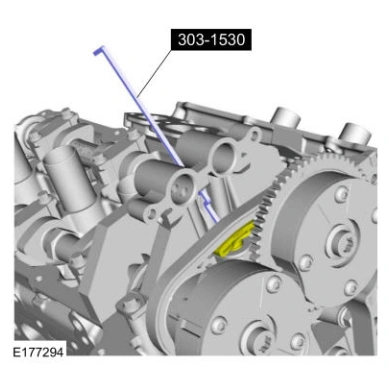

14. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Installation — original illustration 2, reference 5241Original colors & callouts · Select to enlarge

Installation of the LH secondary timing chain tensioner

NOTE: The following 10 steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.

NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.
