Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5235

instructed to do so.

1. Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

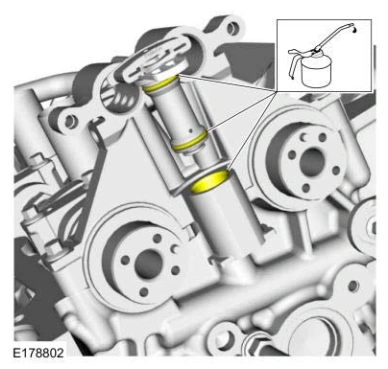

Installation — original illustration 1, reference 5235Original colors & callouts · Select to enlarge

NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

2. Install the RH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

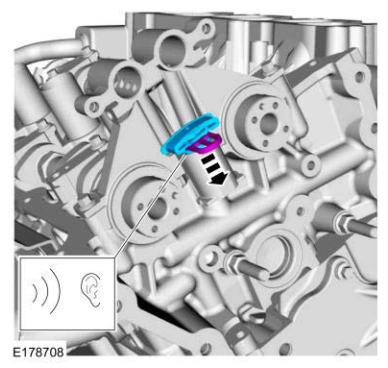

Installation — original illustration 2, reference 5235Original colors & callouts · Select to enlarge

3. Install the RH secondary timing chain tensioner shoe.
