Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,230HTML edition
← Chapter contentsManual collection

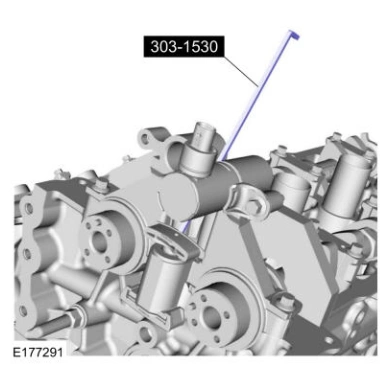

Removal — original illustration 1, reference 5230Original colors & callouts · Select to enlarge

NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.

NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

6. Remove the bolt and the exhaust VCT oil control solenoid.

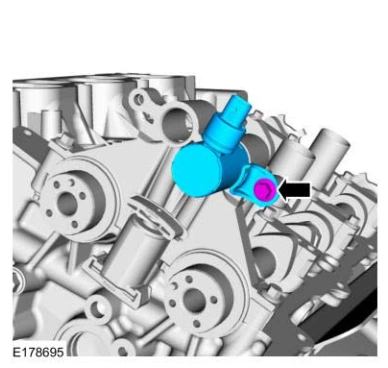

Removal — original illustration 2, reference 5230Original colors & callouts · Select to enlarge

7. Remove the LH secondary timing chain tensioner shoe.

Ford_Mustang_all_2015-2017.pdf · source reference 5230
