NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

2. Disconnect the block heater electrical connector.

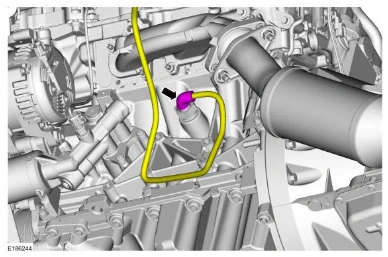

Coolant Pump — original illustration 1, reference 5928Original colors & callouts · Select to enlarge

3. Remove the block heater.

Torque

: 30 lb.ft (40 Nm)

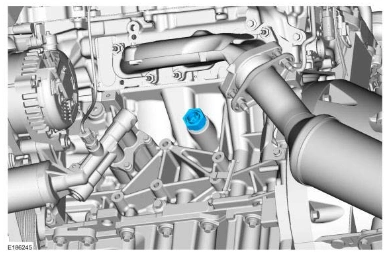

Coolant Pump — original illustration 2, reference 5928Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > BLOCK HEATER > INSTALLATION

1. To install, reverse the removal procedure.

2. Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

REMOVAL AND INSTALLATION > COOLANT PUMP
