Coolant Pump — Removal

Engine Cooling - 3.7L Duratec (227kW 301PS)

Source configuration appliesSource reference 5,930HTML edition
← Chapter contentsManual collection

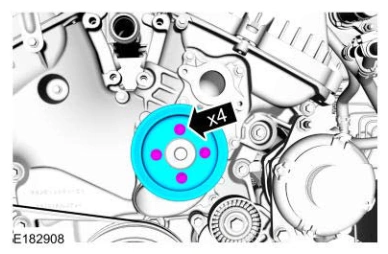

Coolant Pump — original illustration 1, reference 5930Original colors & callouts · Select to enlarge

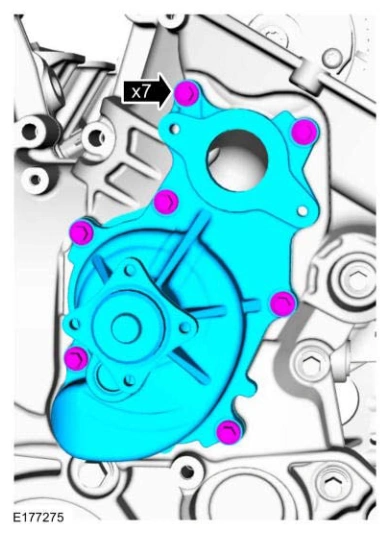

8. Remove the bolts and the coolant pump.

Coolant Pump — original illustration 2, reference 5930Original colors & callouts · Select to enlarge

9. Remove and discard the coolant pump gasket and O-ring seal.
