Coolant Pump — Removal — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5929

Materials

Name	Specification
Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) VC-3-B (U.S.)	WSS-M97B44-D

REMOVAL AND INSTALLATION > COOLANT PUMP > REMOVAL

1. Drain the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

2. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

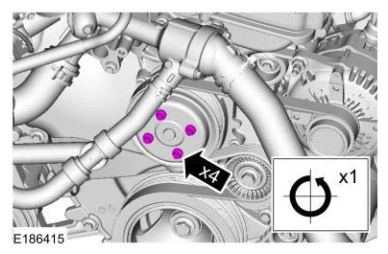

3. Loosen the coolant pump pulley bolts.

Coolant Pump — original illustration 1, reference 5929Original colors & callouts · Select to enlarge

4. Remove the accessory drive belt. Refer to: ACCESSORY DRIVE BELT - 3.7L Duratec (227kW/301PS).

NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.

5. Completely cover the A/C compressor belt with waterproof plastic.

6. Remove the thermostat housing. Refer to: Thermostat Housing .

7. Remove the bolts and the coolant pump pulley.
