REMOVAL AND INSTALLATION > THERMOSTAT > INSTALLATION
1.

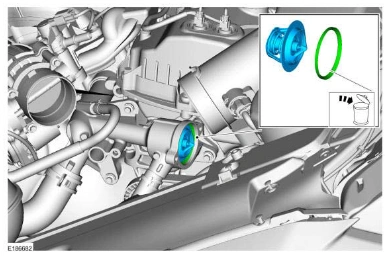

1. Install a new O-ring seal and lubricate it with clean engine coolant.
Material
: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)
2. To install, reverse the removal procedure.
2. Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .
REMOVAL AND INSTALLATION > THERMOSTAT HOUSING
Special Tool(s) / General Equipment
Hose Clamp Remover/Installer
Materials
Name | Specification |
Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) VC-3-B (U.S.) | WSS-M97B44-D |
REMOVAL AND INSTALLATION > THERMOSTAT HOUSING > REMOVAL
