Radiator — Removal

Engine Cooling - 3.7L Duratec (227kW 301PS)

Source configuration appliesSource reference 5,940HTML edition
← Chapter contentsManual collection

Torque

: 97 lb.in (11 Nm)

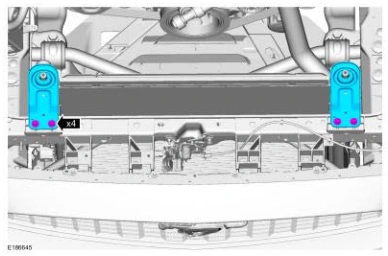

Radiator — original illustration 1, reference 5940Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

8.

1. Position the radiator towards the engine.

2. Release the upper tabs and position the A/C condenser aside.

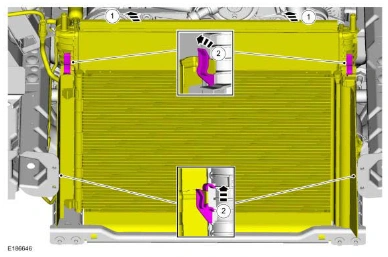

Radiator — original illustration 2, reference 5940Original colors & callouts · Select to enlarge

NOTE: If equipped.

NOTE: Front bumper removed for clarity.

9. Remove the bolts and position aside the transmission fluid cooler.

Torque

: 53 lb.in (6 Nm)
