Degas Bottle — Installation — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5937

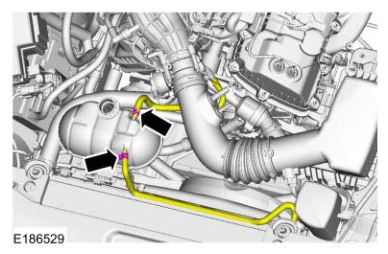

Release the clamps, disconnect the upper degas bottle hoses.

Use the General Equipment: Hose Clamp Remover/Installer

Degas Bottle — original illustration 1, reference 5937Original colors & callouts · Select to enlarge

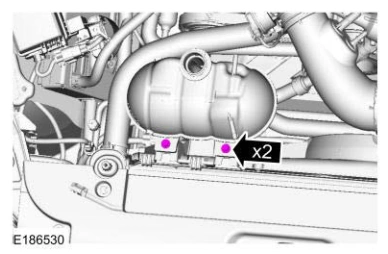

4. Remove the bolts.

Torque

: 80 lb.in (9 Nm)

Degas Bottle — original illustration 2, reference 5937Original colors & callouts · Select to enlarge

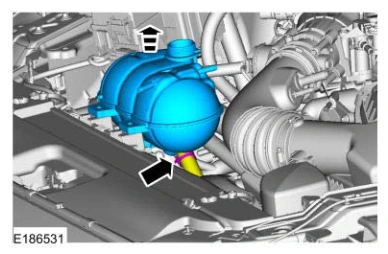

5. Position the degas bottle and disconnect the lower coolant hose.

Use the General Equipment: Hose Clamp Remover/Installer

Degas Bottle — original illustration 3, reference 5937Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > DEGAS BOTTLE > INSTALLATION

Ford_Mustang_all_2015-2017.pdf · source reference 5937
