Radiator — Removal

Engine Cooling - 3.7L Duratec (227kW 301PS)

Source configuration appliesSource reference 5,939HTML edition
← Chapter contentsManual collection

Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

4. Remove the retainers and the radiator sight shield.

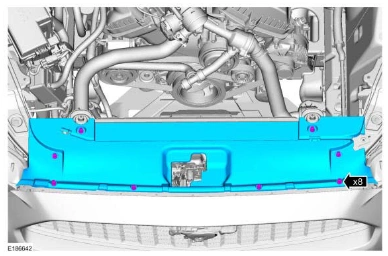

Radiator — original illustration 1, reference 5939Original colors & callouts · Select to enlarge

5. Release the clamp and disconnect the upper radiator hose.

Use the General Equipment: Hose Clamp Remover/Installer

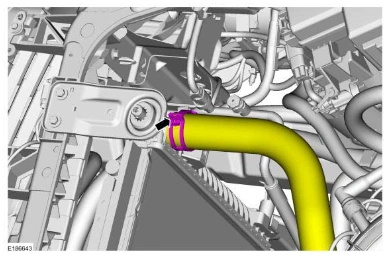

Radiator — original illustration 2, reference 5939Original colors & callouts · Select to enlarge

6. Release the clamp and disconnect the upper coolant hose.

Use the General Equipment: Hose Clamp Remover/Installer

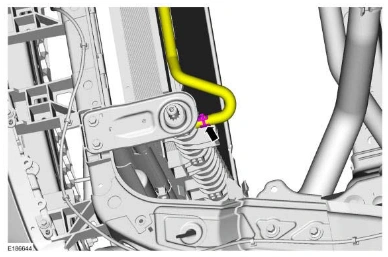

Radiator — original illustration 3, reference 5939Original colors & callouts · Select to enlarge

7. Remove the bolts and the upper radiator support brackets.

Ford_Mustang_all_2015-2017.pdf · source reference 5939
