Thermostat — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5941

Thermostat — original illustration 1, reference 5941Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

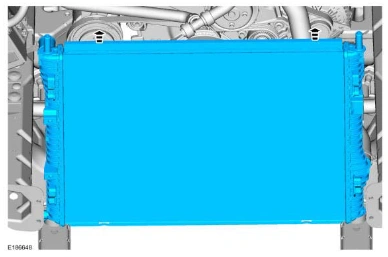

10. Remove the radiator.

Thermostat — original illustration 2, reference 5941Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > RADIATOR > INSTALLATION

1. To install, reverse the removal procedure.

2. Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

REMOVAL AND INSTALLATION > THERMOSTAT

Materials

Name	Specification
Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) VC-3-B (U.S.)	WSS-M97B44-D
