Thermostat Housing — Removal — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5944

1. Drain the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

2. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.

3. Completely cover the accessory drive belts with waterproof plastic.

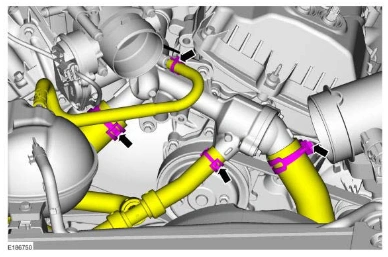

4. Release the clamps and disconnect the coolant hoses.

Use the General Equipment: Hose Clamp Remover/Installer

Thermostat Housing — original illustration 1, reference 5944Original colors & callouts · Select to enlarge

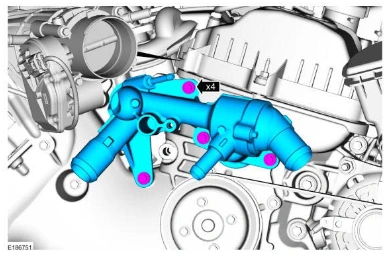

5. Remove the bolts and the thermostat housing.

Thermostat Housing — original illustration 2, reference 5944Original colors & callouts · Select to enlarge

6. Remove and discard the O-ring seal.
