Thermostat Housing — Installation

Engine Cooling - 3.7L Duratec (227kW 301PS)

Source configuration appliesSource reference 5,946HTML edition
← Chapter contentsManual collection
Thermostat Housing — original illustration 1, reference 5946Original colors & callouts · Select to enlarge

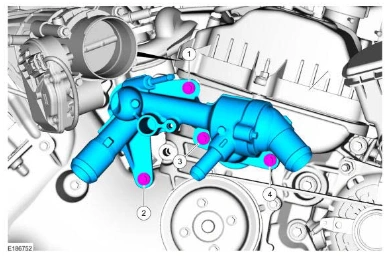

2. Install the thermostat housing, the 4 bolts and tighten in the sequence shown in 2 stages.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

Thermostat Housing — original illustration 2, reference 5946Original colors & callouts · Select to enlarge

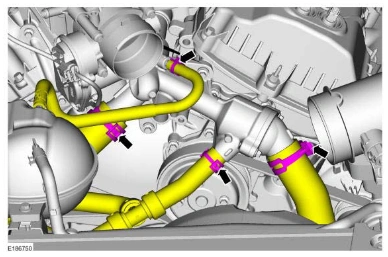

3. Connect the coolant hoses.

Use the General Equipment: Hose Clamp Remover/Installer

Thermostat Housing — original illustration 3, reference 5946Original colors & callouts · Select to enlarge

4.
