Thermostat Housing — Installation — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5945

Thermostat Housing — original illustration 1, reference 5945Original colors & callouts · Select to enlarge

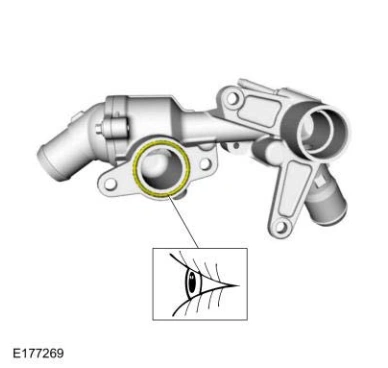

NOTE: Inspect the O-ring seal and replace if necessary.

Thermostat Housing — original illustration 2, reference 5945Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > THERMOSTAT HOUSING > INSTALLATION

1. Install an new O-ring seal and lubricate it with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)
