Degas Bottle — Removal

Engine Cooling - 3.7L Duratec (227kW 301PS)

Source configuration appliesSource reference 5,936HTML edition
← Chapter contentsManual collection

NOTE: Removal steps in this procedure may contain installation details.

1.

Degas Bottle — original illustration 1, reference 5936Original colors & callouts · Select to enlarge
Degas Bottle — original illustration 2, reference 5936Original colors & callouts · Select to enlarge

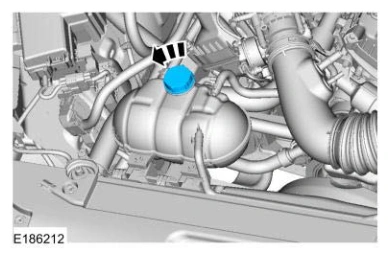

WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Remove the pressure relief cap.

Degas Bottle — original illustration 3, reference 5936Original colors & callouts · Select to enlarge

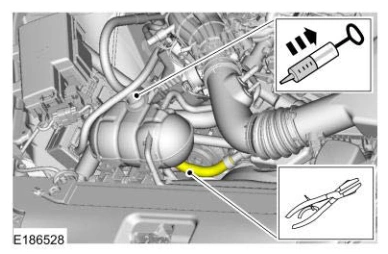

2. Using general tools clamp the lower degas bottle hose and syphon the coolant from the degas bottle.

Use the General Equipment: Fluid Suction Gun

Use the General Equipment: Locking Pliers

Degas Bottle — original illustration 4, reference 5936Original colors & callouts · Select to enlarge

3.
