Cooling Fan Motor And Shroud — Removal — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5934

Cooling Fan Motor And Shroud — original illustration 1, reference 5934Original colors & callouts · Select to enlarge

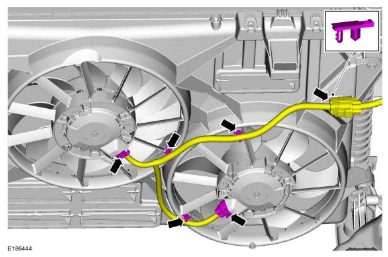

4. Disconnect the cooling fan electrical connectors and detach the wiring harness retainers.

Cooling Fan Motor And Shroud — original illustration 2, reference 5934Original colors & callouts · Select to enlarge

5. Remove the bolts.

Torque

: 53 lb.in (6 Nm)

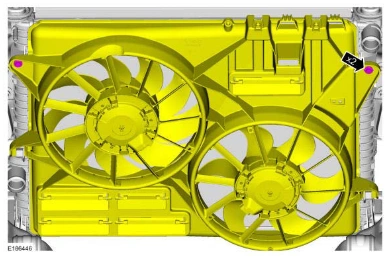

Cooling Fan Motor And Shroud — original illustration 3, reference 5934Original colors & callouts · Select to enlarge

6. Remove the cooling fan motor and shroud.
