Crankshaft Front Seal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5021

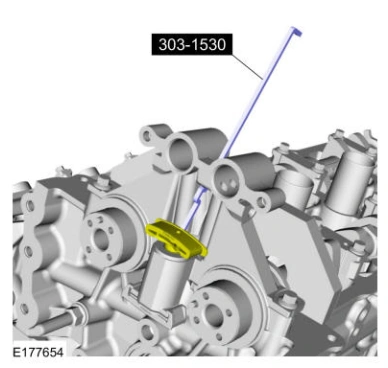

Crankshaft Front Seal — original illustration 1, reference 5021Original colors & callouts · Select to enlarge

All camshafts

23. Rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).

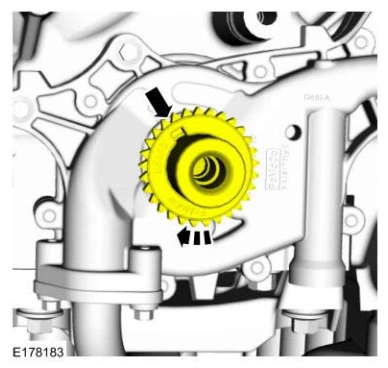

Crankshaft Front Seal — original illustration 2, reference 5021Original colors & callouts · Select to enlarge

24. Install the LH or RH VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .

REMOVAL AND INSTALLATION > CRANKSHAFT FRONT SEAL

Special Tool(s) / General Equipment

Crankshaft Front Seal — original illustration 3, reference 5021Original colors & callouts · Select to enlarge	303-102 Installer, Crankshaft Pulley
