Camshafts — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,019HTML edition

← Chapter contents Manual collection

Camshafts — original illustration 1, reference 5019Original colors & callouts · Select to enlarge

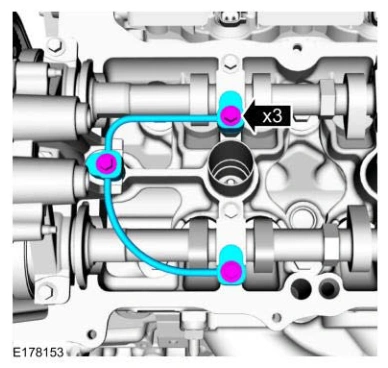

19. Remove bolts and the LH oil tube.

Camshafts — original illustration 2, reference 5019Original colors & callouts · Select to enlarge

20. Rotate the LH camshafts to the TDC.
