Crankshaft Front Seal — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,023HTML edition
← Chapter contentsManual collection

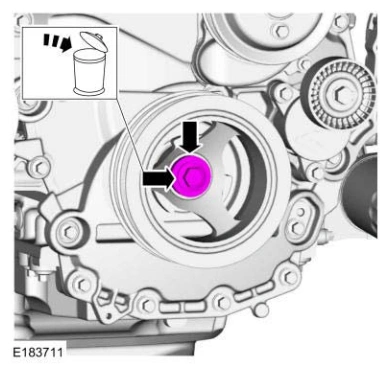

Crankshaft Front Seal — original illustration 1, reference 5023Original colors & callouts · Select to enlarge

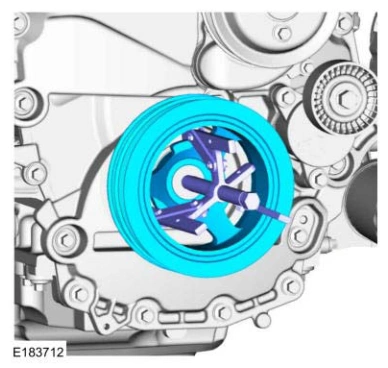

4. Using a three leg puller, remove the crankshaft pulley.

Use the General Equipment: Three Leg Puller

Crankshaft Front Seal — original illustration 2, reference 5023Original colors & callouts · Select to enlarge

5. Using the special tool, remove and discard the crankshaft front seal.

Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
