Crankshaft Front Seal — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5026

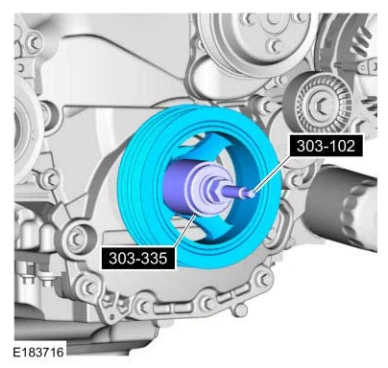

Crankshaft Front Seal — original illustration 1, reference 5026Original colors & callouts · Select to enlarge

5. Using the strap wrench, install the new crankshaft bolt and the washer and tighten in 4 stages.

Use the General Equipment: Strap Wrench

Torque:

Stage 1: 89 lb.ft (120 Nm)

Stage 2: Loosen: 1 turn(s)

Stage 3: 37 lb.ft (50 Nm)

Stage 4: 90°

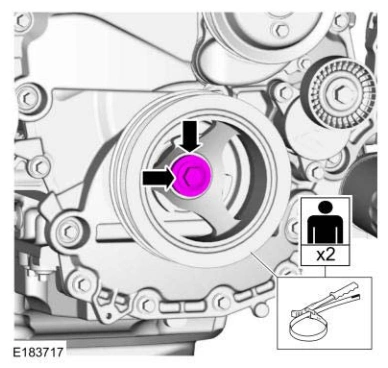

Crankshaft Front Seal — original illustration 2, reference 5026Original colors & callouts · Select to enlarge

6. Install the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

7. Install the degas bottle. Refer to: DEGAS BOTTLE .
