Crankshaft Rear Seal — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,028HTML edition
← Chapter contentsManual collection

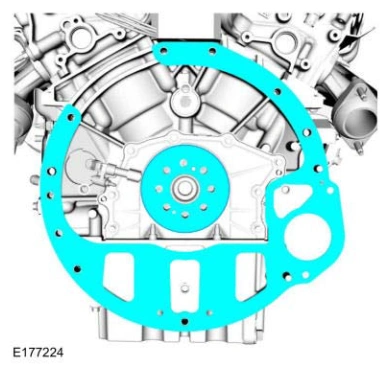

Crankshaft Rear Seal — original illustration 1, reference 5028Original colors & callouts · Select to enlarge

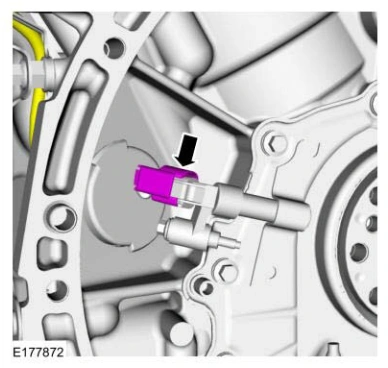

3. Disconnect the CKP sensor electrical connector.

Crankshaft Rear Seal — original illustration 2, reference 5028Original colors & callouts · Select to enlarge

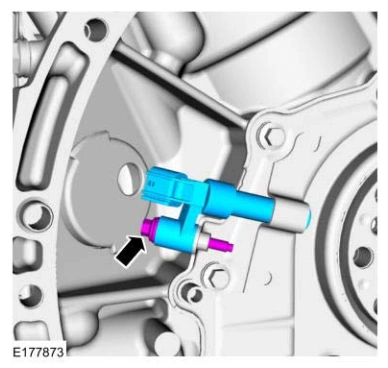

4. Remove the bolt and the CKP sensor.

Crankshaft Rear Seal — original illustration 3, reference 5028Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5028
