Crankshaft Rear Seal — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5031

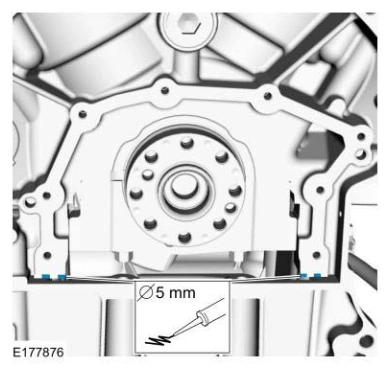

Crankshaft Rear Seal — original illustration 1, reference 5031Original colors & callouts · Select to enlarge

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

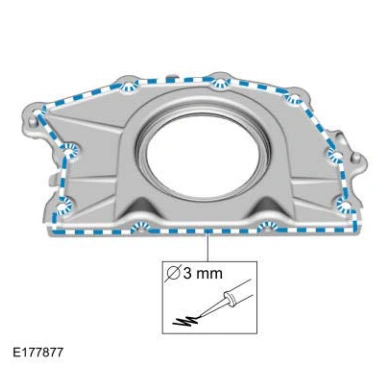

2. Apply 3 mm (0.11 in) bead of silicone sealant.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Crankshaft Rear Seal — original illustration 2, reference 5031Original colors & callouts · Select to enlarge

3. Lubricate the crankshaft rear seal with clean engine oil.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.)
