Crankshaft Rear Seal — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,032HTML edition
← Chapter contentsManual collection

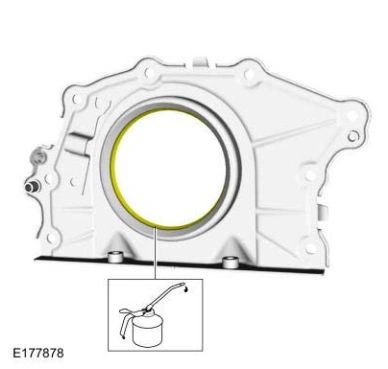

(WSS-M2C945-A)

Crankshaft Rear Seal — original illustration 1, reference 5032Original colors & callouts · Select to enlarge

4.

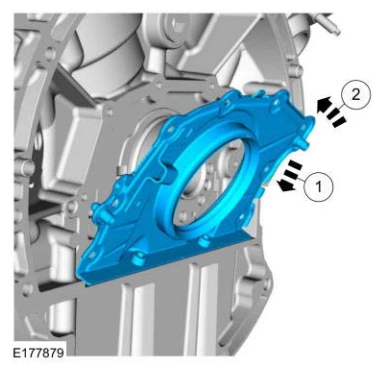

1. Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.

2. Tilt the seal retainer up and onto the rear of the cylinder block.

Crankshaft Rear Seal — original illustration 2, reference 5032Original colors & callouts · Select to enlarge

5. Install the bolts and tighten in sequence shown in illustration.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°
