Crankshaft Rear Seal — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,034HTML edition
← Chapter contentsManual collection

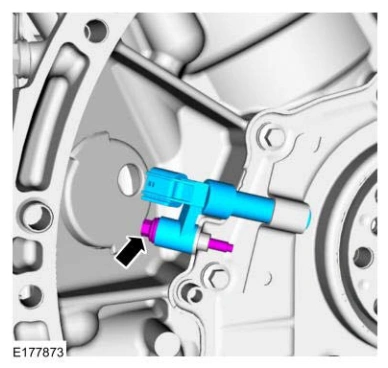

Crankshaft Rear Seal — original illustration 1, reference 5034Original colors & callouts · Select to enlarge

8. Connect the CKP sensor electrical connector.

Crankshaft Rear Seal — original illustration 2, reference 5034Original colors & callouts · Select to enlarge

9. Install the engine-to-transmission spacer plate and the crankshaft sensor ring.

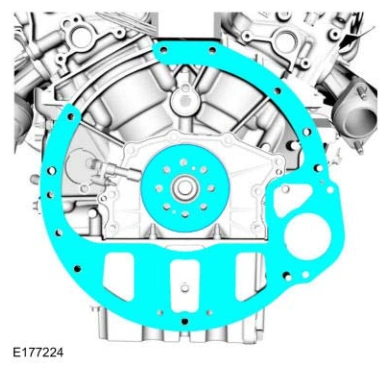

Crankshaft Rear Seal — original illustration 3, reference 5034Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5034
