Cylinder Head LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,037HTML edition
← Chapter contentsManual collection
Cylinder Head LH — original illustration 1, reference 5037Original colors & callouts · Select to enlarge

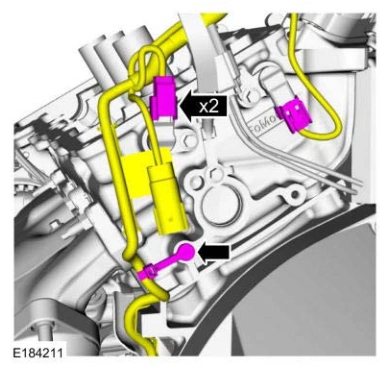

9. Disconnect the CMP sensor electrical connectors and detach the wiring harness retainer.

Cylinder Head LH — original illustration 2, reference 5037Original colors & callouts · Select to enlarge

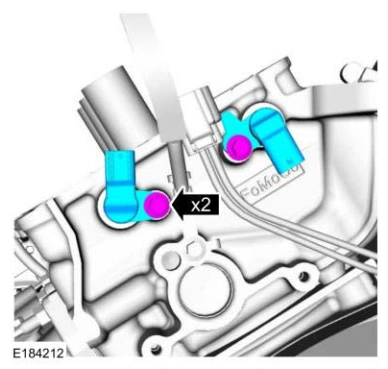

10. Remove the bolts and the CMP sensors.

Cylinder Head LH — original illustration 3, reference 5037Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5037
