Cylinder Head LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,038HTML edition
← Chapter contentsManual collection

NOTE: Do not use power tools to remove the bolt or damage to the upper LH timing chain guide may occur.

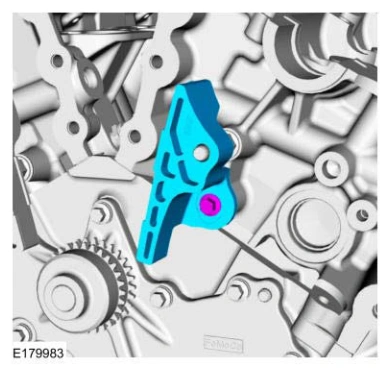

11. Remove the bolt and the upper LH timing chain guide.

Cylinder Head LH — original illustration 1, reference 5038Original colors & callouts · Select to enlarge

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

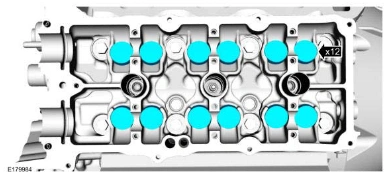

12. Remove the valve tappets.

Cylinder Head LH — original illustration 2, reference 5038Original colors & callouts · Select to enlarge

13. Inspect and install new components as necessary.
