Cylinder Head LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5041

gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

18. Make sure that the mating faces are clean and free of foreign material.

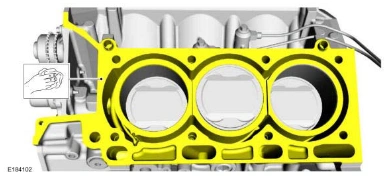

Cylinder Head LH — original illustration 1, reference 5041Original colors & callouts · Select to enlarge

19. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .

REMOVAL AND INSTALLATION > CYLINDER HEAD LH > INSTALLATION

1. Install the cylinder head gasket.

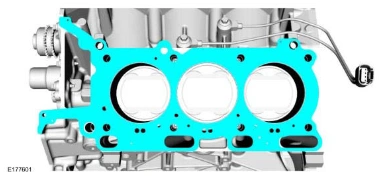

Cylinder Head LH — original illustration 2, reference 5041Original colors & callouts · Select to enlarge

NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

NOTE: Install new cylinder head bolts.

2. Install the cylinder head and the new bolts.

Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 26 lb.ft (35 Nm)
