Cylinder Head LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5043

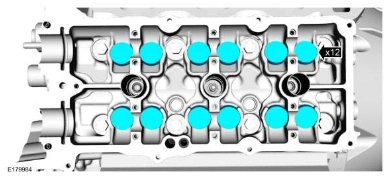

Cylinder Head LH — original illustration 1, reference 5043Original colors & callouts · Select to enlarge

NOTE: Do not use power tools to install the bolt or damage to the upper LH timing chain guide may occur.

5. Install the upper LH timing chain guide and the bolt.

Torque

: 89 lb.in (10 Nm)

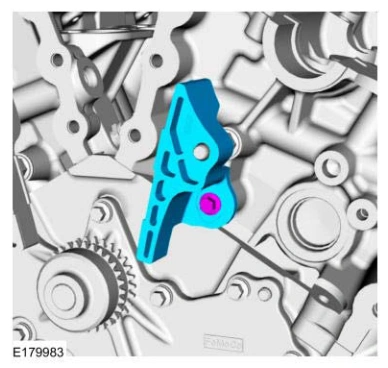

Cylinder Head LH — original illustration 2, reference 5043Original colors & callouts · Select to enlarge

NOTE: Lubricate the O-ring seals with clean engine oil.

6. Install the CMP sensors and the bolts.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Torque

: 89 lb.in (10 Nm)
