Cylinder Head LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5045

Cylinder Head LH — original illustration 1, reference 5045Original colors & callouts · Select to enlarge

9. Install the lower intake manifold. Refer to: Lower Intake Manifold .

10. Install the LH camshafts. Refer to: Camshafts .

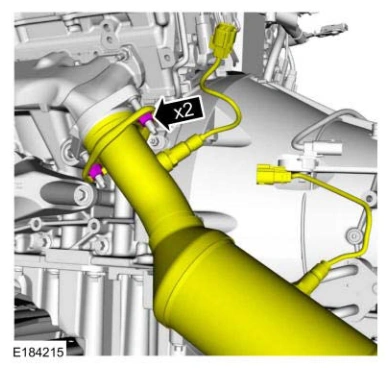

11. Position the LH catalytic converter and install new flange nuts.

Torque

: 30 lb.ft (40 Nm)

Cylinder Head LH — original illustration 2, reference 5045Original colors & callouts · Select to enlarge

12. Connect the LH HO2S and catalyst monitor sensor electrical connectors.
