Lower Intake Manifold — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,102HTML edition
← Chapter contentsManual collection

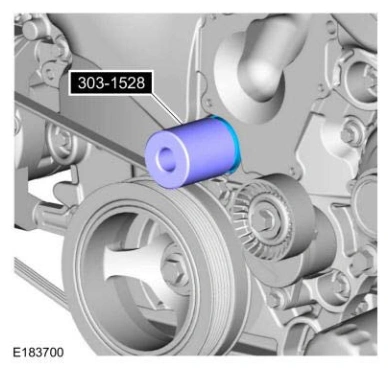

Lower Intake Manifold — original illustration 1, reference 5102Original colors & callouts · Select to enlarge

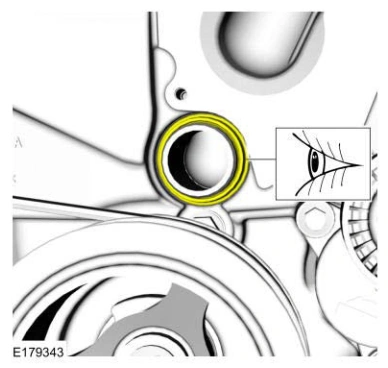

2. Inspect the front cover to coolant pipe seal for proper installation or damage.

Lower Intake Manifold — original illustration 2, reference 5102Original colors & callouts · Select to enlarge

3. Install the coolant pump. Refer to: COOLANT PUMP .

REMOVAL AND INSTALLATION > LOWER INTAKE MANIFOLD > REMOVAL

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: It is not necessary to remove the fuel rail from the intake manifold assembly.

1.
