Lower Intake Manifold — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,104HTML edition

← Chapter contents Manual collection

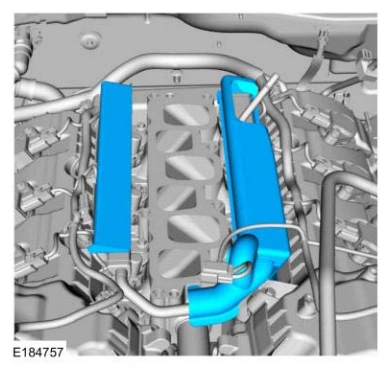

Lower Intake Manifold — original illustration 1, reference 5104Original colors & callouts · Select to enlarge

8. Remove the thermostat housing. Refer to: THERMOSTAT HOUSING .

9. Disconnect the fuel injector electrical connectors.

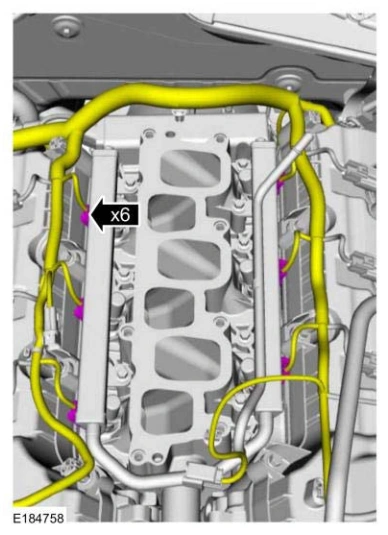

Lower Intake Manifold — original illustration 2, reference 5104Original colors & callouts · Select to enlarge

10. Disconnect the coolant tube from the back of the lower intake manifold.
