Lower Intake Manifold — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,107HTML edition

← Chapter contents Manual collection

Lower Intake Manifold — original illustration 1, reference 5107Original colors & callouts · Select to enlarge

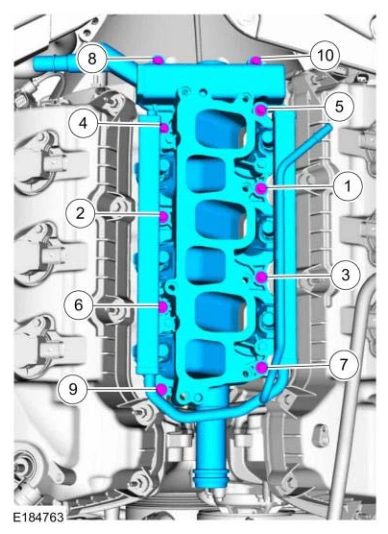

2. Install the lower intake manifold and the bolts.

Torque

: 89 lb.in (10 Nm)

Lower Intake Manifold — original illustration 2, reference 5107Original colors & callouts · Select to enlarge

3. Connect the coolant tube to the back of the lower intake manifold.
