Oil Pan — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5109

Oil Pan — original illustration 1, reference 5109Original colors & callouts · Select to enlarge

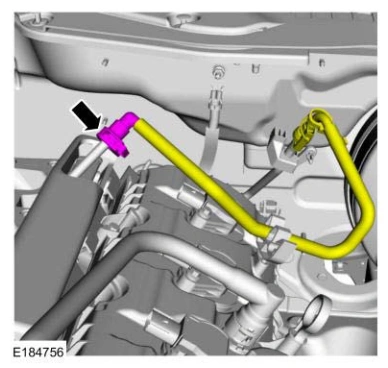

7. Connect the fuel tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

Oil Pan — original illustration 2, reference 5109Original colors & callouts · Select to enlarge

8. Install the upper intake manifold. Refer to: Upper Intake Manifold .

9. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

10. Fill the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

REMOVAL AND INSTALLATION > OIL PAN

Special Tool(s) / General Equipment

Ford_Mustang_all_2015-2017.pdf · source reference 5109
