Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5111

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

Convertible

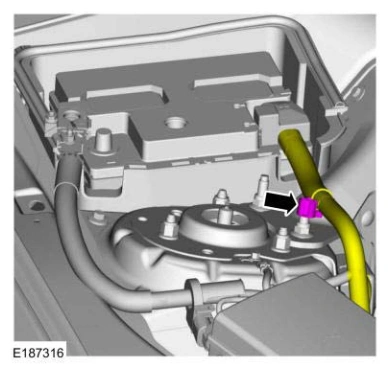

4. Detach the battery cable retainer.

Oil Pan — original illustration 1, reference 5111Original colors & callouts · Select to enlarge

5. Disconnect the positive battery cable. Refer to: Battery Disconnect and Connect .

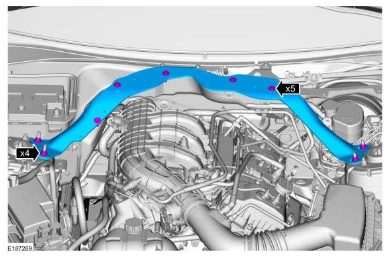

6. Remove the cowl extension nuts.

Remove the bolts and the cowl extension.

Oil Pan — original illustration 2, reference 5111Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82
