Oil Pan — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,113HTML edition
← Chapter contentsManual collection

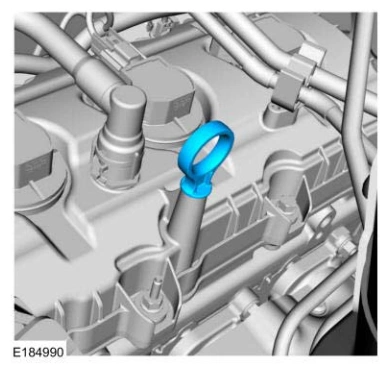

Oil Pan — original illustration 1, reference 5113Original colors & callouts · Select to enlarge

9. Remove the oil level indicator.

Oil Pan — original illustration 2, reference 5113Original colors & callouts · Select to enlarge

10. Remove the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

11. Disconnect the A/C compressor electrical connector and the wire harness retainer.

Ford_Mustang_all_2015-2017.pdf · source reference 5113
