Oil Pan — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,116HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 5116Original colors & callouts · Select to enlarge

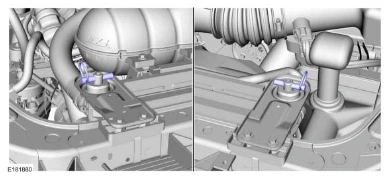

17. Install retaining pins to support cooling module.

Oil Pan — original illustration 2, reference 5116Original colors & callouts · Select to enlarge

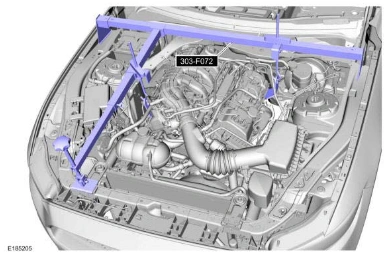

18. Install the special tool to support the engine.

Install Special Service Tool: 303-F072 Support Bar, Engine.

Oil Pan — original illustration 3, reference 5116Original colors & callouts · Select to enlarge

19. Remove the front wheels and tires. Refer to: Wheel and Tire .

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

20.

1. Remove the bolts and the underbody shield.

2.
