Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5118

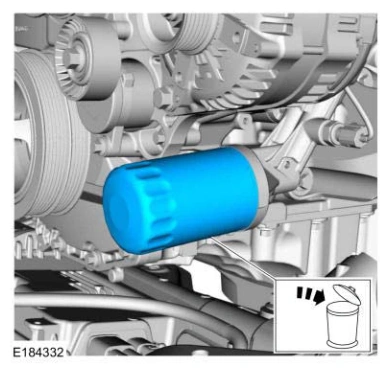

Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment

Oil Pan — original illustration 1, reference 5118Original colors & callouts · Select to enlarge

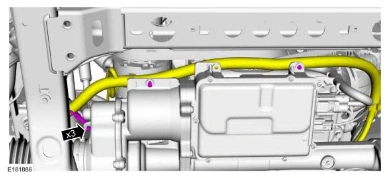

24. Detach the EPAS wiring harness pin-type retainers.

Oil Pan — original illustration 2, reference 5118Original colors & callouts · Select to enlarge

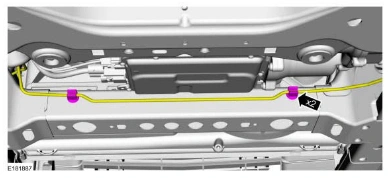

25. Detach the brake line retainers from the subframe.

Oil Pan — original illustration 3, reference 5118Original colors & callouts · Select to enlarge

26.

WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
