Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5117

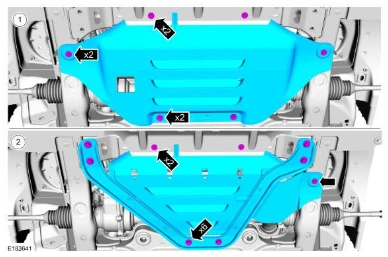

Remove the bolts and the subframe bracket and underbody shield assembly.

Oil Pan — original illustration 1, reference 5117Original colors & callouts · Select to enlarge

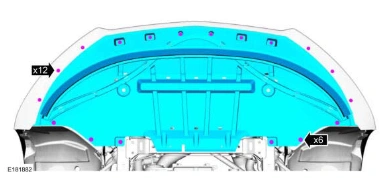

21. Remove the pin-type retainers, bolts and the underbody shield.

Oil Pan — original illustration 2, reference 5117Original colors & callouts · Select to enlarge

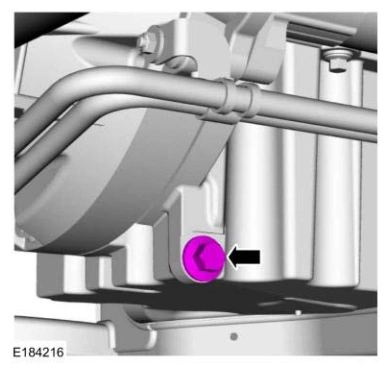

22. Remove the oil pan plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment

Install the oil pan drain plug.

Torque

: 20 lb.ft (27 Nm)

Oil Pan — original illustration 3, reference 5117Original colors & callouts · Select to enlarge

23.
