Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5114

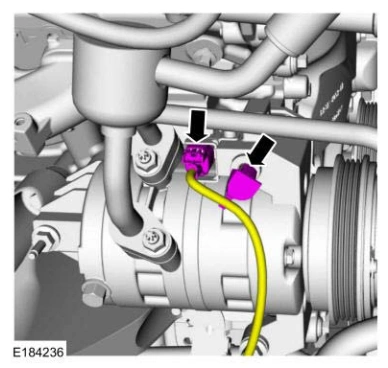

Oil Pan — original illustration 1, reference 5114Original colors & callouts · Select to enlarge

NOTE: The stud bolts and bolt will stay with the A/C compressor.

12. Loosen the stud bolts, bolt and position the A/C compressor aside.

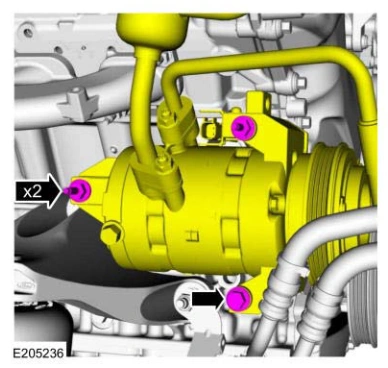

Oil Pan — original illustration 2, reference 5114Original colors & callouts · Select to enlarge

13. Install Special Service Tool: 303-1529 Lift Eye, Engine.

Ford_Mustang_all_2015-2017.pdf · source reference 5114
