Oil Pan — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,115HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 5115Original colors & callouts · Select to enlarge

14. Install Special Service Tool: 303-1245 Engine Lift Eye.

Oil Pan — original illustration 2, reference 5115Original colors & callouts · Select to enlarge

15. Remove the RH and LH engine mount bracket nuts.

Oil Pan — original illustration 3, reference 5115Original colors & callouts · Select to enlarge

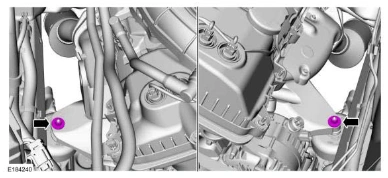

16. Remove the retainers and the radiator top shield.

Ford_Mustang_all_2015-2017.pdf · source reference 5115
