Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5121

30. Using an adjustable stand, support the subframe.

Use the General Equipment: Vehicle/Axle Stands

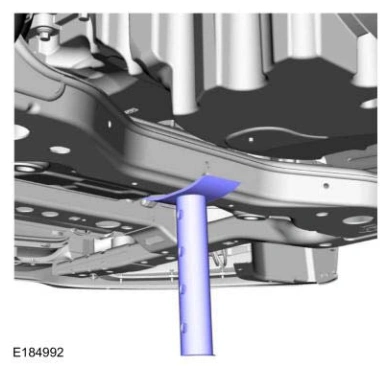

Oil Pan — original illustration 1, reference 5121Original colors & callouts · Select to enlarge

31. Remove and discard the rear subframe bolts.

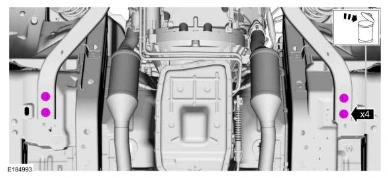

Oil Pan — original illustration 2, reference 5121Original colors & callouts · Select to enlarge

32. Remove and discard the front subframe nuts.

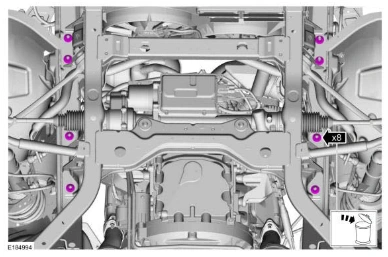

Oil Pan — original illustration 3, reference 5121Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

33. Remove the nut and position the transmission cooling tube bracket aside.
