Oil Pan — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,124HTML edition
← Chapter contentsManual collection

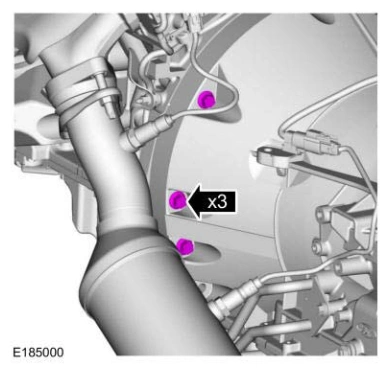

Oil Pan — original illustration 1, reference 5124Original colors & callouts · Select to enlarge

39. Remove the engine front cover bolts.

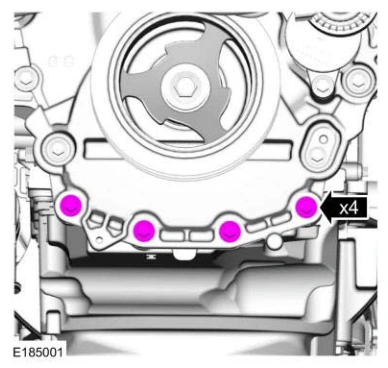

Oil Pan — original illustration 2, reference 5124Original colors & callouts · Select to enlarge

40. Separate the engine and transmission 5 mm (0.19 in).

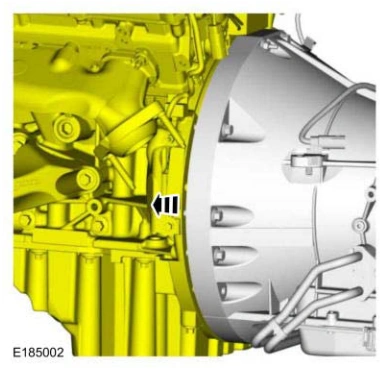

Oil Pan — original illustration 3, reference 5124Original colors & callouts · Select to enlarge
