Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5122

Oil Pan — original illustration 1, reference 5122Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

34. Using an adjustable stand, lower the subframe 102 mm (4.0 in).

Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 2, reference 5122Original colors & callouts · Select to enlarge

NOTE: To prevent damage to the transmission, do not loosen the transmission- to-engine fasteners more than 5 mm (0.19 in).

35. Loosen the bellhousing bolt 5 mm (0.19 in).

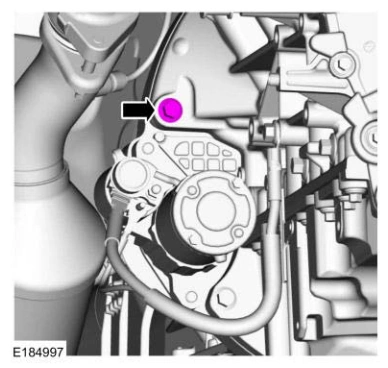

Oil Pan — original illustration 3, reference 5122Original colors & callouts · Select to enlarge
