Oil Pan — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5125

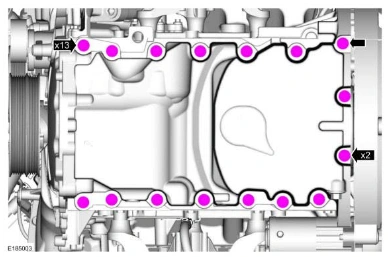

41. Remove the oil pan bolts.

Oil Pan — original illustration 1, reference 5125Original colors & callouts · Select to enlarge

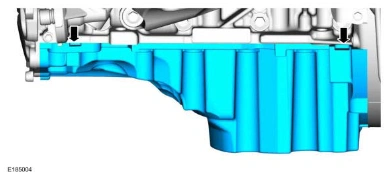

42. Using a pry tool on the pry pads shown in illustration, remove the oil pan.

Oil Pan — original illustration 2, reference 5125Original colors & callouts · Select to enlarge

NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

43. Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.
