Oil Pan — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,123HTML edition
← Chapter contentsManual collection

36. Remove the oil pan bolt.

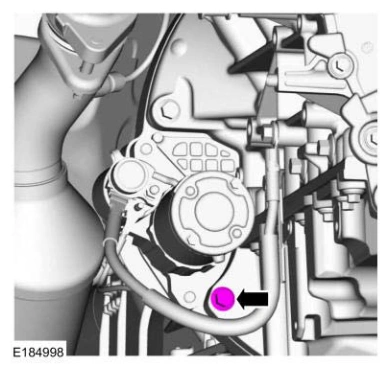

Oil Pan — original illustration 1, reference 5123Original colors & callouts · Select to enlarge

NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan bolt than the manual transmission.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

37. Remove the oil pan bolts.

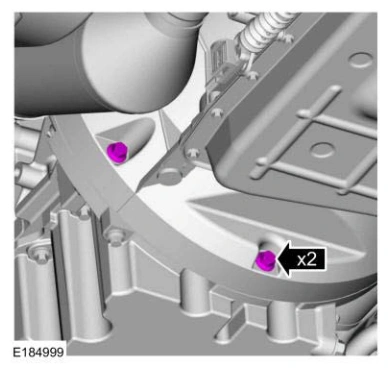

Oil Pan — original illustration 2, reference 5123Original colors & callouts · Select to enlarge

NOTE: To prevent damage to the transmission, do not loosen the transmission- to-engine fasteners more than 5 mm (0.19 in).

38. Loosen the bellhousing bolts 5 mm (0.19 in).

Ford_Mustang_all_2015-2017.pdf · source reference 5123
