Lower Intake Manifold — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,105HTML edition

← Chapter contents Manual collection

Lower Intake Manifold — original illustration 1, reference 5105Original colors & callouts · Select to enlarge

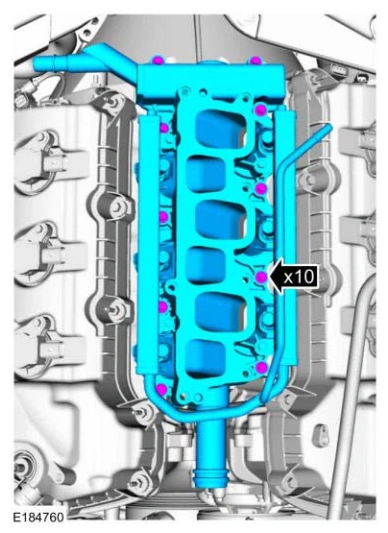

11. Remove the bolts and the lower intake manifold.

Lower Intake Manifold — original illustration 2, reference 5105Original colors & callouts · Select to enlarge

12. Remove and discard the lower intake manifold gaskets.

Clean and inspect all sealing surfaces.
