Lower Intake Manifold — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5103

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

4. Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

5. Remove the upper intake manifold. Refer to: Upper Intake Manifold .

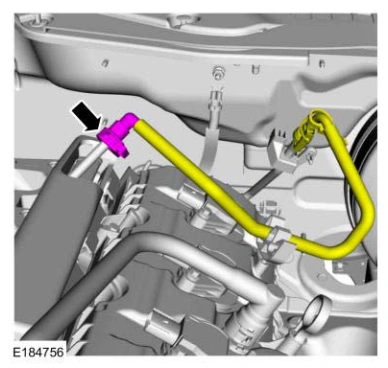

6. Disconnect the fuel tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

Lower Intake Manifold — original illustration 1, reference 5103Original colors & callouts · Select to enlarge

7. Remove the fuel rail sound insulators.
