Fuel System Pressure Release — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6149

Fuel System Pressure Release — original illustration 1, reference 6149Original colors & callouts · Select to enlarge

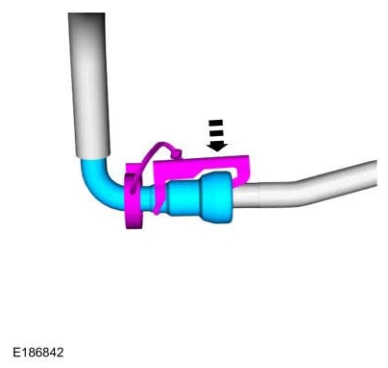

3. Pull on the coupling to make sure it is fully engaged.

4. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

GENERAL PROCEDURES > FUEL SYSTEM PRESSURE RELEASE

Pressure release

NOTE: The FPDM is located on the LH side, beneath the rear seat cushion.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

NOTE: On vehicles equipped with Gasoline Turbocharged Direct Injection (GTDI), running the engine with the FPDM disconnected will remove most of the pressure from both the low and high pressure sides of the system.

2. Disconnect the FPDM electrical connector.
