Spring Lock Couplings

Fuel System - General Information - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,148HTML edition

← Chapter contents Manual collection

Spring Lock Couplings — original illustration 1, reference 6148Original colors & callouts · Select to enlarge

Connect

1. Align and push the spring lock coupling onto the tube until fully seated.

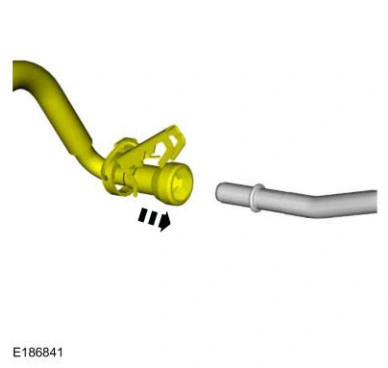

Spring Lock Couplings — original illustration 2, reference 6148Original colors & callouts · Select to enlarge

2. If equipped, install the fuel tube safety clip.
